600V High Temperature Tin Plated Copper 16 18 20AWG FEP Coated Wire
High Temperature Wire is mainly used for connecting household appliances, the motors, electric heating appliances, lighting equipment and instruments with the rated ac voltage of 600V and below. It has excellent aging resistance, softness and long service life.Silicone rubber material is non - toxic and tasteless, it is more safe and reliable when used in a variety of household appliances.
1. FEP lead wire has excellent electrical insulation performance, high voltage resistance, low frequency loss, no moisture absorption, large insulation resistance; excellent flame resistance and resistance.
2. It has excellent corrosion resistance, oil resistance, strong acid, strong alkali resistance, strong oxidant, etc.;
3. The wire has excellent aging performance and long service life.
Properties:
1. Rated voltage: AC600V or Below
2. Working temperature: -65 ~ +200° C
3. Conductor Type: Stranded or Solid
4. Conductor Materials: Tinned Plated or Silver Plated Stranded Copper
5. Insulation Materials: FEP Insulated
6. Wire Gauge: 10AWG ~ 26AWG...
7. Colors: White, Black, Gray, Yellow, Blue, Violet, Red, Orange, Transparent, Green...
| Type |
| FEP insulation Silver plated copper conductor lead wire |
| FEP insulation Tinned copper conductor lead wire |
| FEP insulation Tinned or silver coated copper conductor shielding lead wire |
| FEP insulation Tinned or silver coated stranded copper twisted lead wire |
| FEP insulation Tinned or silver coated stranded copper twisted shield lead wire |
Wire gauge
(AWG) | Section area
(mm2) | Conductor construction
piece/diameter
(mm) | Insulation thickness
(mm) | Outer diameter
(mm) | Max. Conductor resistance at 20℃
(Ω/Km) | Packing length
(m) |
| 10awg | 5mm2 | 37x0.43mm | 0.33mm | 3.67 | 3.546 | 305 |
| 12awg | 3mm2 | 19x0.49mm | 0.33mm | 3.11 | 5.64 | 305 |
| 14awg | 2mm2 | 19x0.37mm | 0.33mm | 2.51 | 8.96 | 305 |
| 16awg | 1.2mm2 | 19x0.3mm | 0.33mm | 2.16 | 14.6 | 305 |
| 17awg | | 19x0.26mm | 0.33mm | 1.96 | 18.3 | 305 |
| 18awg | 1mm2 | 19x0.23mm | 0.33mm | 1.81 | 23.2 | 305 |
| 20awg | 0.5mm2 | 19x0.2mm | 0.33mm | 1.61 | 36.7 | 305 |
| 1x0.8mm | 0.33mm | 1.46 | 35.2 | 305 |
| 22awg | 0.3mm2 | 19x0.16mm | 0.33mm | 1.46 | 59.4 | 610 |
| 1x0.65mm | 0.33mm | 1.31 | 56.4 | 610 |
| 24awg | 0.2mm2 | 7x0.2mm | 0.33mm | 1.26 | 94.2 | 610 |
| 1x0.5mm | 0.33mm | 1.16 | 89.3 | 610 |
| 26awg | 0.12mm2 | 7x0.16mm | 0.33mm | 1.14 | 150 | 610 |
| 1x0.4mm | 0.33mm | 1.06 | 143 | 610 |
| 28awg | 0.08mm2 | 7x0.12mm | 0.33mm | 1.02 | 239 | 610 |
| 1x0.32mm | 0.33mm | 0.98 | 227 | 610 |
| 30awg | 0.06mm2 | 7x0.1mm | 0.33mm | 0.96 | 381 | 610 |
| 1x0.254mm | 0.33mm | 0.914 | 361 | 610 |
| 32awg | 0.035mm2 | 7x0.08mm | 0.41mm | 1.06 | 664.8 | 610 |
| 1x0.2mm | 0.41mm | 1.02 | 588.3 | 610 |
Noted:Specification and core no. are not limited to above regulation,they could be customized.
Product Tags:
|
|

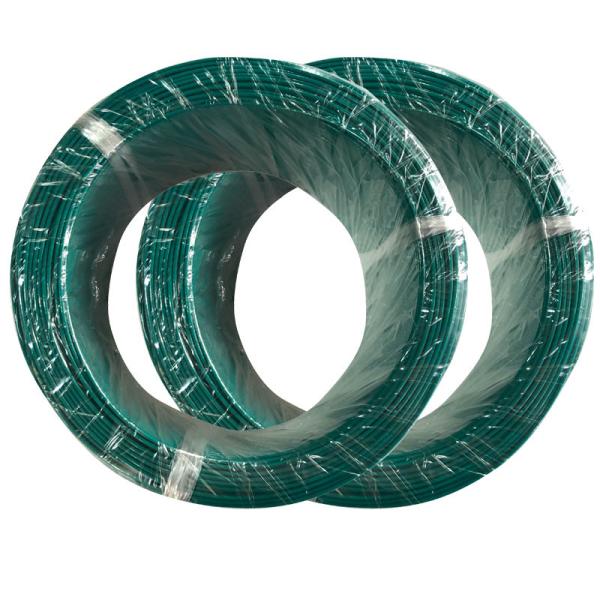

600V High Temperature Tin Plated Copper 16 18 20AWG FEP Coated Wire Images
|
