PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction

Model Number : AFK-250

Brand Name : Sanco cable

Place of Origin : Hunan, China

MOQ : 100

Conductor Material : Silver plated

Insulation Material : PFA

Rated Voltage : 600V

Conductor Type : Stranded

Wire Gauge : 36awg~3/0awg

Color Options : 10 base colors

Working Temperature : -65℃ ~ +250℃

Core Number : Single Core

Packing Length : 100m/roll or 500m/roll

Max Temperature : 260°C

Chemical Resistance : High

Electrical Insulation : Excellent

Flexibility : High

Low Friction : Yes

Heat Resistance : Yes

Contact Now

Product Description
What is PFA Insulated wire? PFA insulated wire refers to electrical wire that is insulated with perfluoroalkoxy (PFA) polymer.
PFA is a type of fluoropolymer that is known for its excellent thermal stability, chemical resistance, and electrical insulating properties.

Here are some key characteristics of PFA insulated wire: 1. **High Temperature Resistance**: PFA can withstand high temperatures, typically up to around 260°C (500°F), making it suitable for applications in environments where other insulation materials might fail. 2. **Chemical Resistance**: PFA is highly resistant to a wide range of chemicals, including acids, bases, and solvents, which makes it ideal for use in harsh environments. 3. **Low Friction**: PFA has a low coefficient of friction, which can be beneficial in applications where the wire may need to move or flex. 4. **Electrical Insulation**: PFA provides excellent electrical insulation properties, making it suitable for use in various electrical and electronic applications. 5. **Flexibility**: PFA insulated wires are often flexible, which allows for easier installation in tight spaces or complex configurations. Application:PFA insulated wire is commonly used in industries such as aerospace, automotive, chemical processing, and electronics, where high performance and reliability are critical.
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction

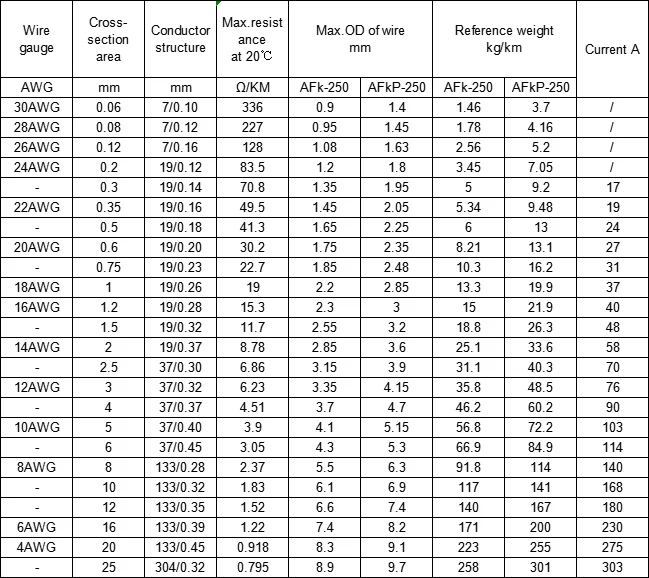

Specification
Application
it is used for connection of circuit of instruments and precision equipment under high temperature
Advantages
small diameter, wear resistant, scratch resistant, high and low temperature resistant, corrosion resistant, anti-interference.
Color
black, brown, red, yellow, green, blue, purple, gray, white
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction
Conductor
Silver plated copper wire
Nickel plated copper wire
Insulation
PFA insulated
Conductor Type
Stranded or solid
Working Temperature
-65℃ ~ +250℃
Rated Voltage
AC 600V
Wire Gauge
36awg~3/0awg
Core Number
Single Core
Packing Length
100m/roll or 500m/roll
Free Sample
Yes
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction
Company Profile
Shenzhou Special cable is a leading manufacturer and supplier of custom wires and cables which mainly engaged in production of high temperature wire(PTFE wire,PFA wire,FEP wire,ETFE tefzel wire),Robot cable, Crane cable, Drag chain cable(TPU cable,TPE cable) etc.These wires and cables are widely used in aerospace, robot, oil field, wind power, rail locomotives,electronics and other fields.
Our factory has a technical exquisite experienced team, the perfect quality control system ,to provide most high quality product to the customer all over the world ,including USA,Mexico,France,Croatia,Czech,Pakistan,Australia,Dubai and some other countries.
After 20 years’ development, We have achieved great progress, Our products have been used in the Project of National Rocket and China Manned Space Engineering Program. And passed the weapons and equipment quality management system certification, ISO9001 and CCC certification.
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction
7000+ sqm standard factory and 14 production lines
Our product
- Applying high quality or imported raw materials,with better chemica and heat resistance and long life - Annealed pure copper,with Low resistance
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction
Strict inspection is required before shipment,like Annealing test,Tensile test ,Conductor resistance test ,Thickness of Insulation test and Measurement of overall diameter etc.
1.500+ sqm professional testing laboratory
2.Advanced cable testing equipment
3.Professional QC team
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction
In the past years,We participated in the Middle East Electricity Exhibition in Dubai,China-ASEAN Exposition,Power-Gen in India...
More than 20 years experience in cable production,We hope that our professional service and high quality products can bring you success and satisfaction
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction
Shenzhou Special cable have more than 80 skilled technicians and employees with professional experience
Focus on your special wire cable custom,and give us the complicated things -PTFE Wire -FEP Wire -PFA Wire -ETFE Wire
-PUR Cable -TPE Cable -Fibergalss cable
Why Choose Us
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction
1. More than 20 years of special cable R&D and manufacturing experience
2. Company have audited by CCC ,Weapons and equipment,ISO9001 system certification
3. A stable wire and cable supplier of China's aerospace and military
4. Advanced cable testing equipment
5. Low MOQ for custom cable
6. Support free samples and free design services
7. 1~3 year warranty period
Packing & Delivery
PFA Insulated Single Core Wire with 36awg~3/0awg Wire Gauge Chemical Resistance and Low Friction
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1.Packing in roll with carton boxes 2.Packing in spool with carton boxes 3.Packing with barrel or pallet
4.Packing in wooden tray
